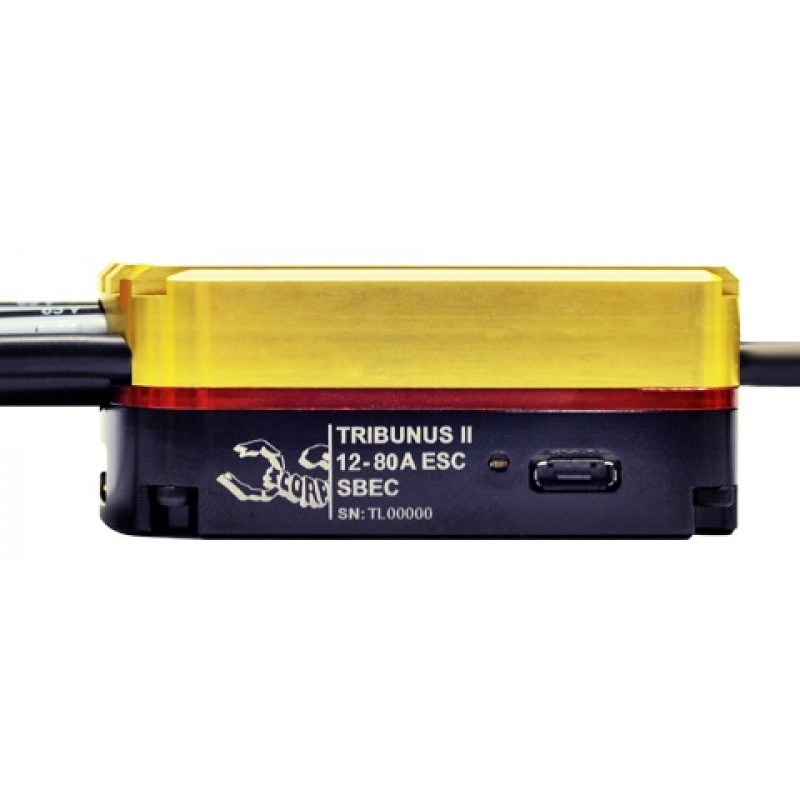

SCORPION MODEL TRIBUNUS II 12-80A ESC SBEC
- Brand: SCORPION
- Product Code: TRIBUNUS-II-12-80A
- Availability: In Stock
-
RM1,175.00
Product Description :
Airplane and Heli mode,
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba.
ESC setup can be set by Mikado V control Radio.
PC connectivity with USB micro cable (not included), Android connectivity ( OTG cable needed) , V link II Cable, plus Diode adaptor cable sold separately for optional use.
Supported HvLi battery 12S total 52V.
Size: 76.7 x 36.5 x 25.4 mm
Weight: 144 Grams.
Scorpion Tribunus II (and II+) ESC User Manual
Scorpion Tribunus Heli Program Sproto
Tutorial / WARNING about using ESC's with a Power Supply, or Long Battery Cables
Scorpion V Link II Cable CH340 Driver (For all ESC use)
Scorpion ESC USB driver (For all ESC with USB port use)
How to update Tribunus firmware
Using Tribunus with Futaba Telemetry Guide
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
DIY your spark suppressor system on a ESC
Specifications :
| Max Continuous Current | 80 Amps |
| Peak Current | 120 Amps |
| Operating Voltage Range | 14-52 Volts |
| BEC Output voltage: | 5.1V to 8.1V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.4 mOhms *2 |
| Size | 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in) |
| Weight (Without Connectors) | 144g (5.08 oz) |
| Drive frequency | 8kHz - 32kHz |
Included in the Box
Connection cable *2
Weight including packaging
250g
