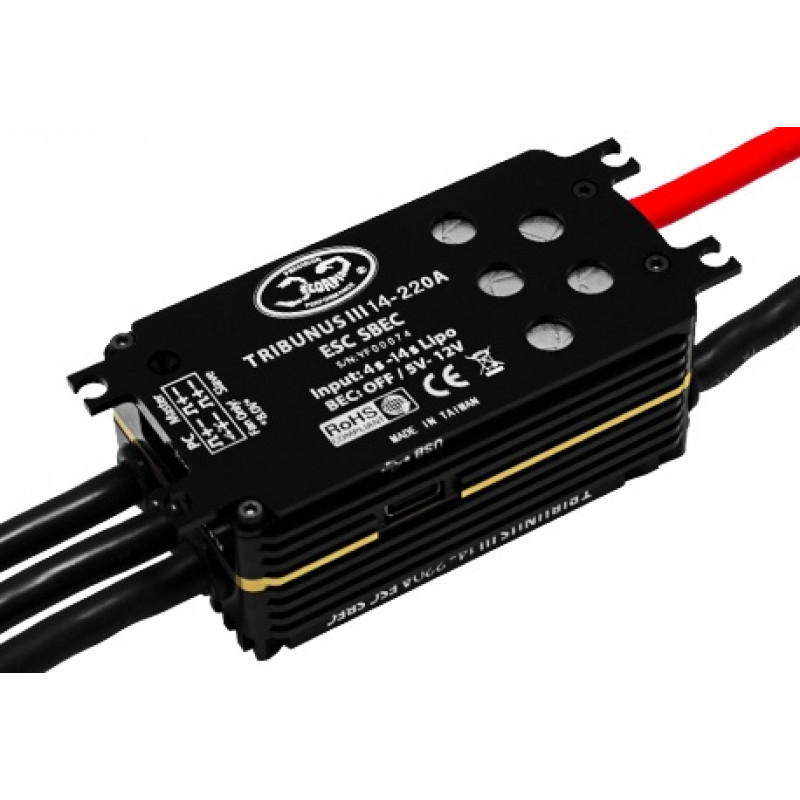

SCORPION MODEL TRIBUNUS III 14-220A ESC(SBEC)
- Brand: SCORPION
- Product Code: TRIBUNUS-III-14-220A
- Availability: In Stock
-
RM2,080.00
Full Dimension
Specifications
| Max Continuous Current* | 220 Amps |
| Peak Current | 300 Amps |
| Operating Voltage Range | 13-61 Volts |
| BEC Output voltage: | OFF / 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.55mOhms*2 |
| ESC Body Size | 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in) |
| Mounting Tab Dimensions | 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt |
| Weight (without wires) | 194g ( 6.84oz) |
| Weight (With wires) | 294g ( 10.37oz) |
| Drive frequency | 8kHz - 32kHz Dynamic Frequency |
| Cable size | 8 AWG x 200mm |
| Max Electrical RPM | 240,000RPM |
| *Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow | |
Included in the Box
1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Weight including packaging
610g
