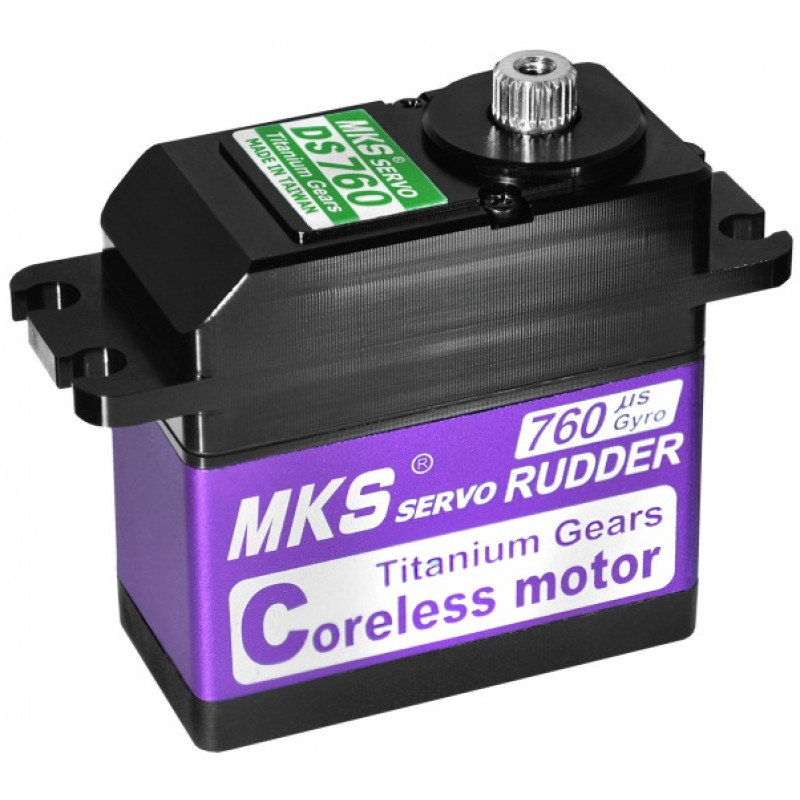

MKS MODEL DS760 SERVO ALUMINUM UPPER CASE
- Brand: MKS
- Product Code: DS760
- Availability: In Stock
-
RM415.00
DESCRIPTION :
Torque (4.8V): 3.9 kg-cm / 54.17 oz-in
Torque (6.0V): 4.9 kg-cm / 67.78 oz-in
Speed: 0.034 s (4.8V) / 0.027 s (6.0V)
Weight: 75 g (2.64 oz)
Dimensions：40 x 20 x 40 mm
| SERVO SPECIFICATION : | |
| Stall Torque (kg-cm) | 3.9 (4.8V) / 4.9 (6.0V) |
| Stall Torque (oz-in) | 54.17 (4.8V) / 67.78 (6.0V) |
| No-load Speed | 0.034 s (4.8V) / 0.027 s (6.0V) |
| Stall Current | 3.3A (4.8V) / 4.1A (6.0V) |
| Working Voltage | 4.8V ~ 7.0V DC Volts |
| Working Frequency | 760μs / 560hz |
| Dead Band | 0.0004ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
