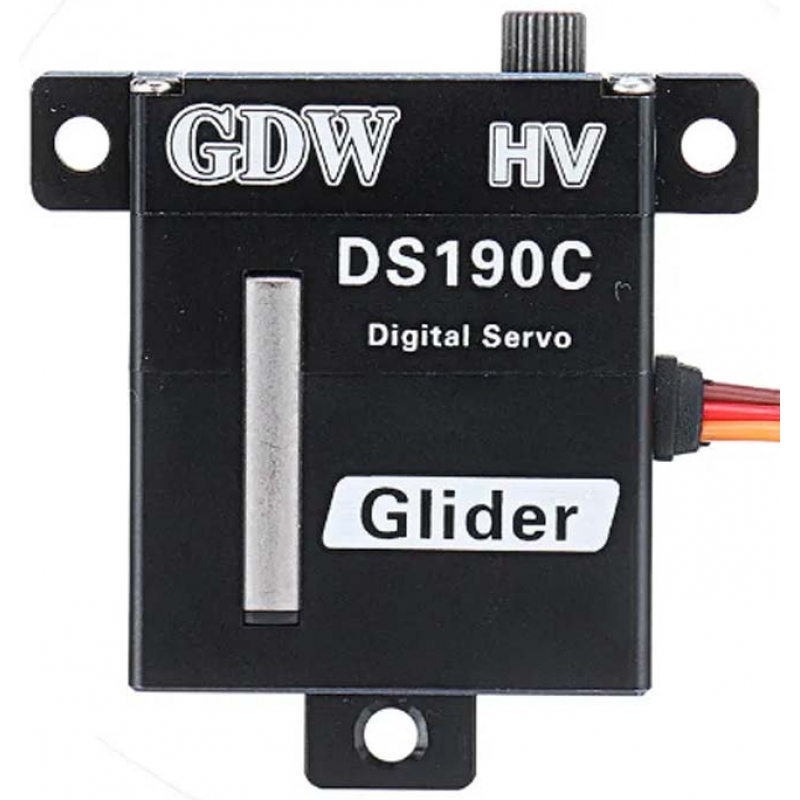

GDW MODEL DS190C CORELESS METAL GEAR FULL ALUMINIUM DIGITAL WING SERVO

GDW MODEL DS190C CORELESS METAL GEAR FULL ALUMINIUM DIGITAL WING SERVO

  • Brand: GDW
  • Product Code: GDW-DS190C
  • Availability: In Stock

  • RM99.00



0 reviews / Write a review

Description

  • Wing Servo,Coreless Metal Gear Digital Servo For RC Airplane Glider
  • Working frequency: 1520us/333Hz
  • Operating Voltage: DC 4.8V – 8.4V
  • 10.5Kg.cm/0.09sec/60°@8.4V
  • 9.5Kg.cm/0.10sec/60°@7.4V
  • 7.5Kg.cm/0.12sec/60°@6.0V
  • Dimensions: 30x10x35mm
  • Dead Band: 2μs
  • Neutral Position: 1520μs/333hz
  • Motor: Coreless Motor 10*20mm
  • Teeth: 25T
  • Wire: 220mm
  • Weight: About35g
  • Application: For RC Airplane Glider
  • Gears: Full Metal – Steel
  • Case: Full Aluminium
  • Horn Type: 25T – 4.9mm

Additional information

Torque.Speed.Size

6.0Kg.cm/0.07sec/60°@6.0V
7.0Kg.cm/0.06sec/60°@7.4V
8.0Kg.cm/0.05sec/60°@8.4V
30* 10* 35mm
Operating Frequency

1520us/333Hz
Motor Type

Coreless Motor
