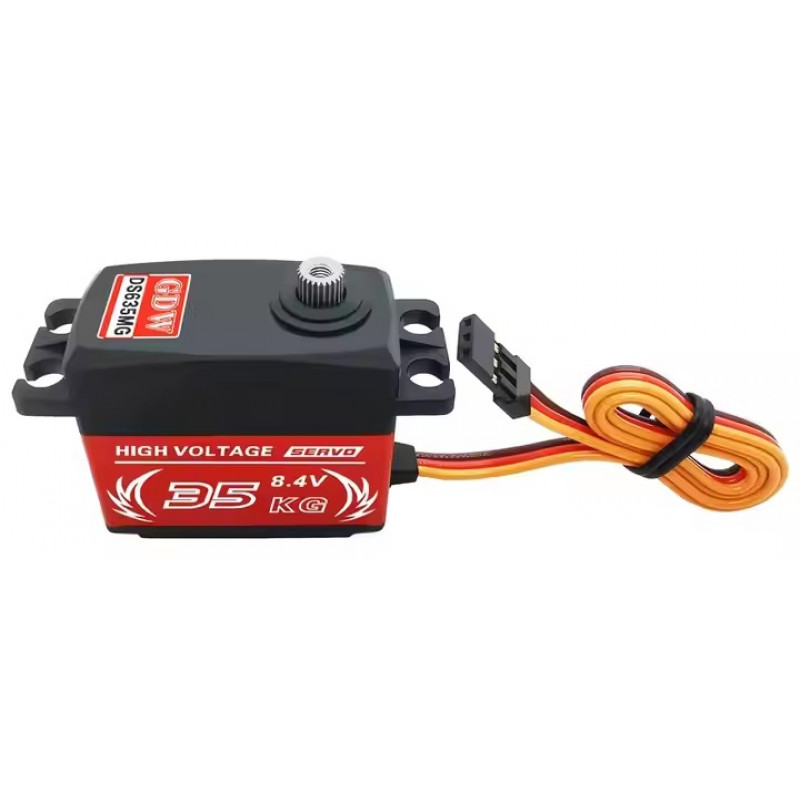

GDW MODEL DS635MG DIGITAL CORELESS SERVO METAL GEAR
- Brand: GDW
- Product Code: GDW-DS635MG
- Availability: In Stock
-
RM138.00

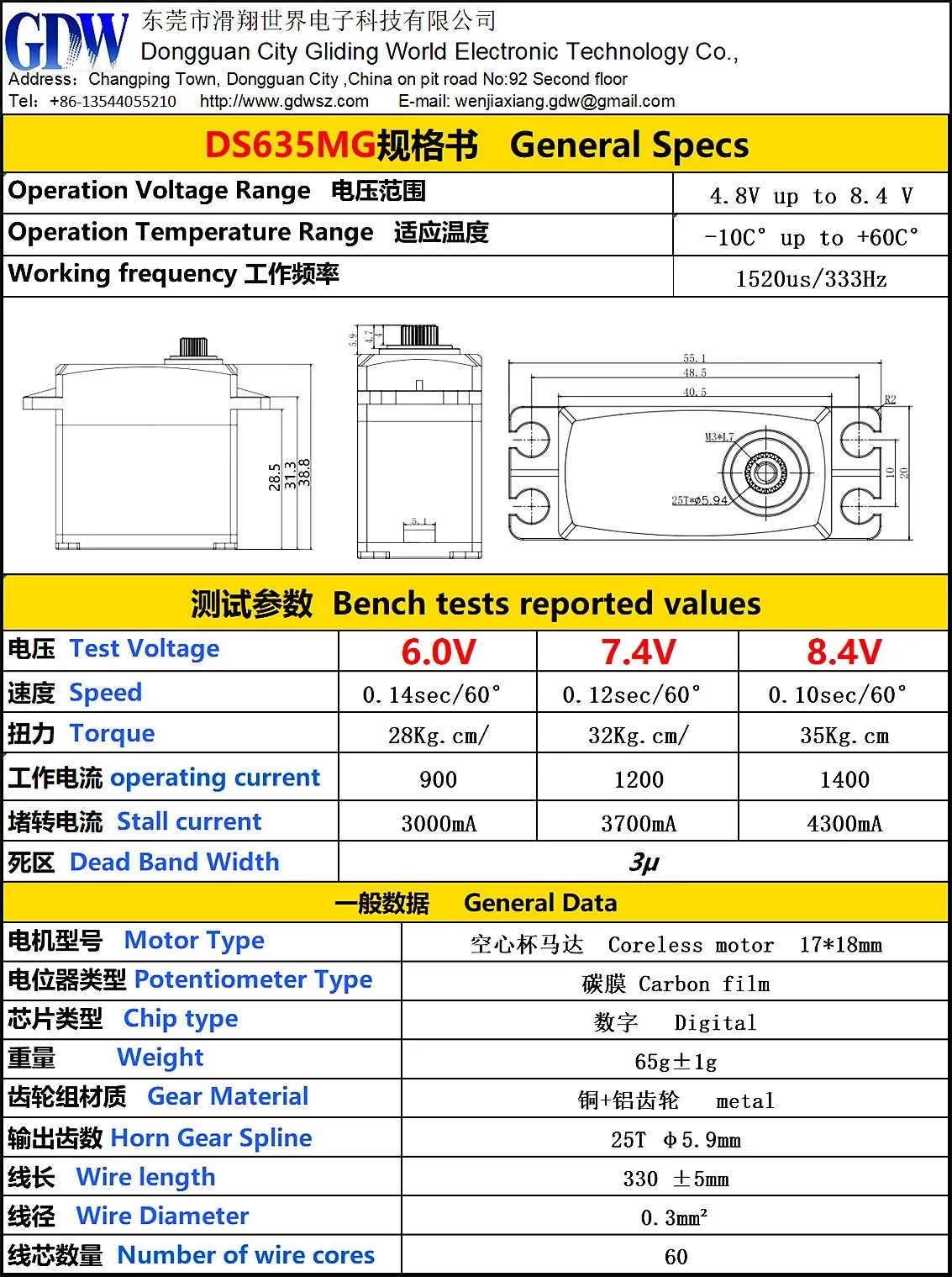

Specifications :
| Hign-concerned Chemical | None |
| Remote Control Peripherals/Devices | Servos |
| Size | 40.5*20*38.8mm |
| Wheelbase | Bottom Plate |
| RC Parts & Accs | Servos |
| Use | Vehicles & Remote Control Toys |
| Origin | Mainland China |
| Upgrade Parts/Accessories | Gear |
| Quantity | 1 pcs |
| Brand Name | JX |
| Tool Supplies | Grinded |
| Technical parameters | KV1100 |
| Recommend Age | 12+y |
| Certification | CE,FCC,RoHS |
| For Vehicle Type | Airplanes |
| Material | Metal |
| Model Number | 35kg Digital Servo |
Description :
DescriptionReport ItemThe default angle of the model remote control is about 60°.Pulse width 1000-2000us,
controllable angle is 90°
The controllable angle is 120 °, commonly used in: RC model car, RCairplane model, RC ship model. Pulse width 900-2100us
Controllable angle 180°, suitable for: robot joints, industrialdevelopment,
pulse width 500-2500us
Metal middle shell Metal gear Coreless motor.Can be used for: model aircraft, fixed-wing aircraft, turbojet UAV, RC model car, etc.
Brand: GDW
Model：DS635MG
Dead band: 3μs 1520μs / 333hz
Motor: Coreless Motor
Operating Speed (6V): 0.14sec/60°
Operating Speed (7.4V): 0.12sec/60°
Operating Speed (8.4V): 0.10sec/60°
Stall Torque (6V): 28kg.cm
Stall Torque (7.4V): 32kg.cm
Stall Torque (8.4V): 35kg.cm

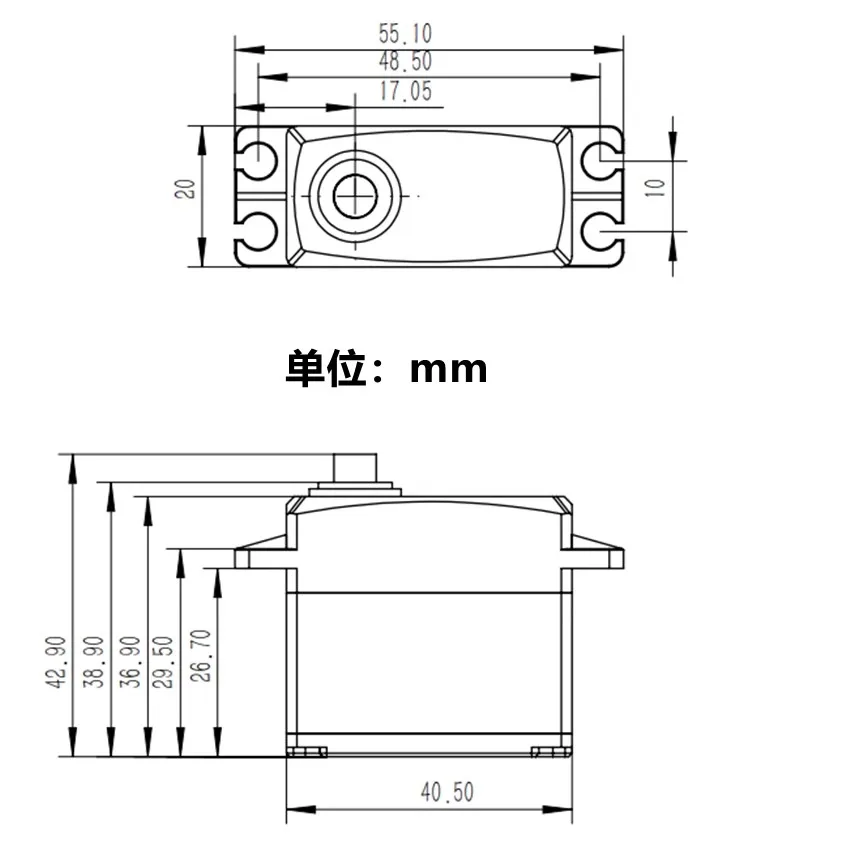

Dimensions: 40.5*20*38.8mm
Weight: 65g
Connector Wire Length: JR 330 mm
Bearing: 2BB
